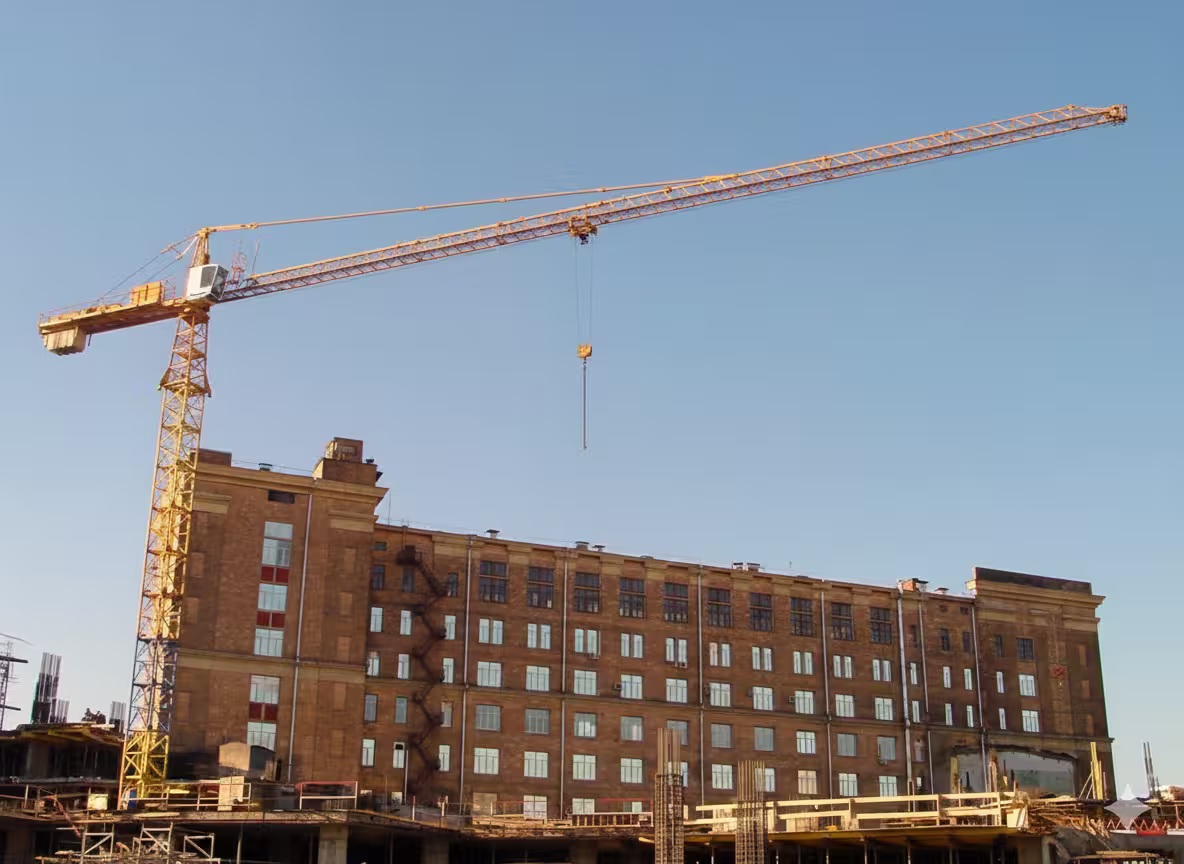

LIEBHERR 91 EC

LIEBHERR 98 EC

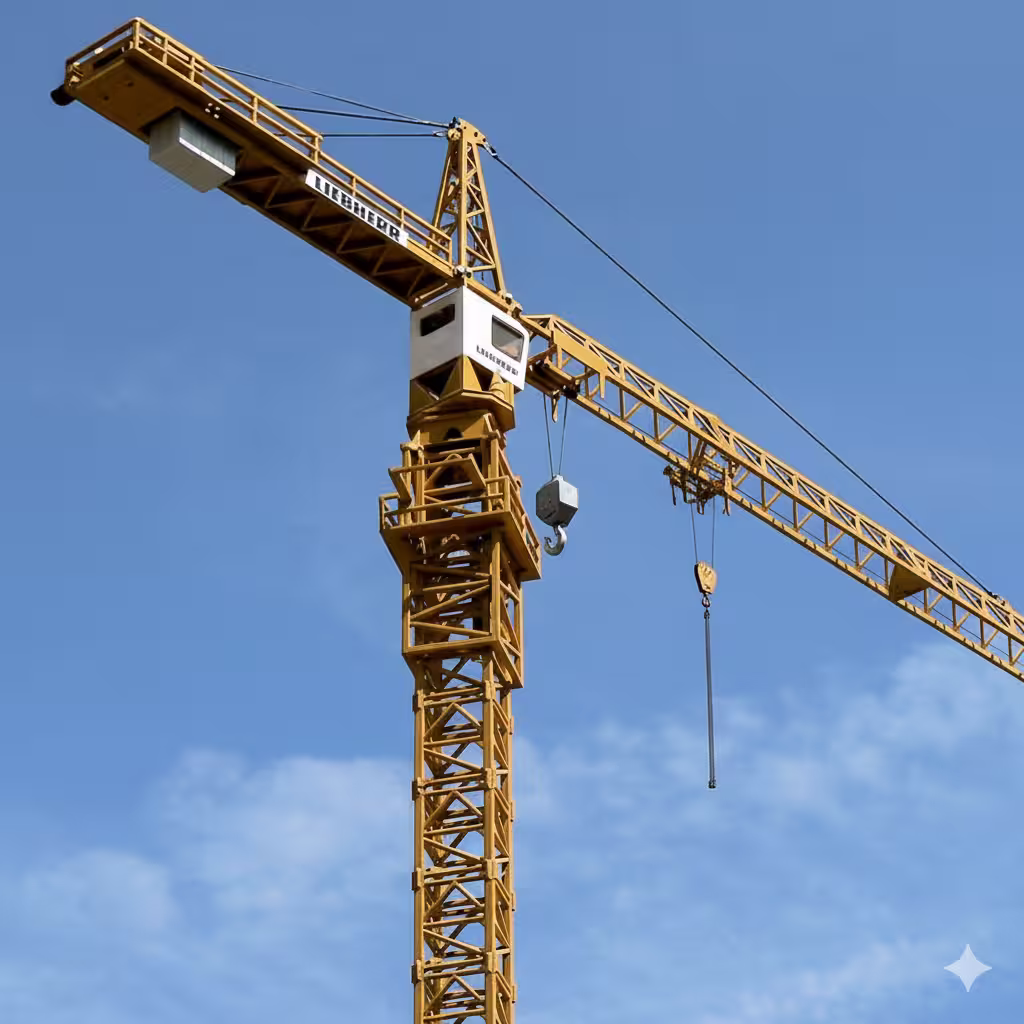

LIEBHERR 112 EC-H

LIEBHERR 120 HC

LIEBHERR 132 HC

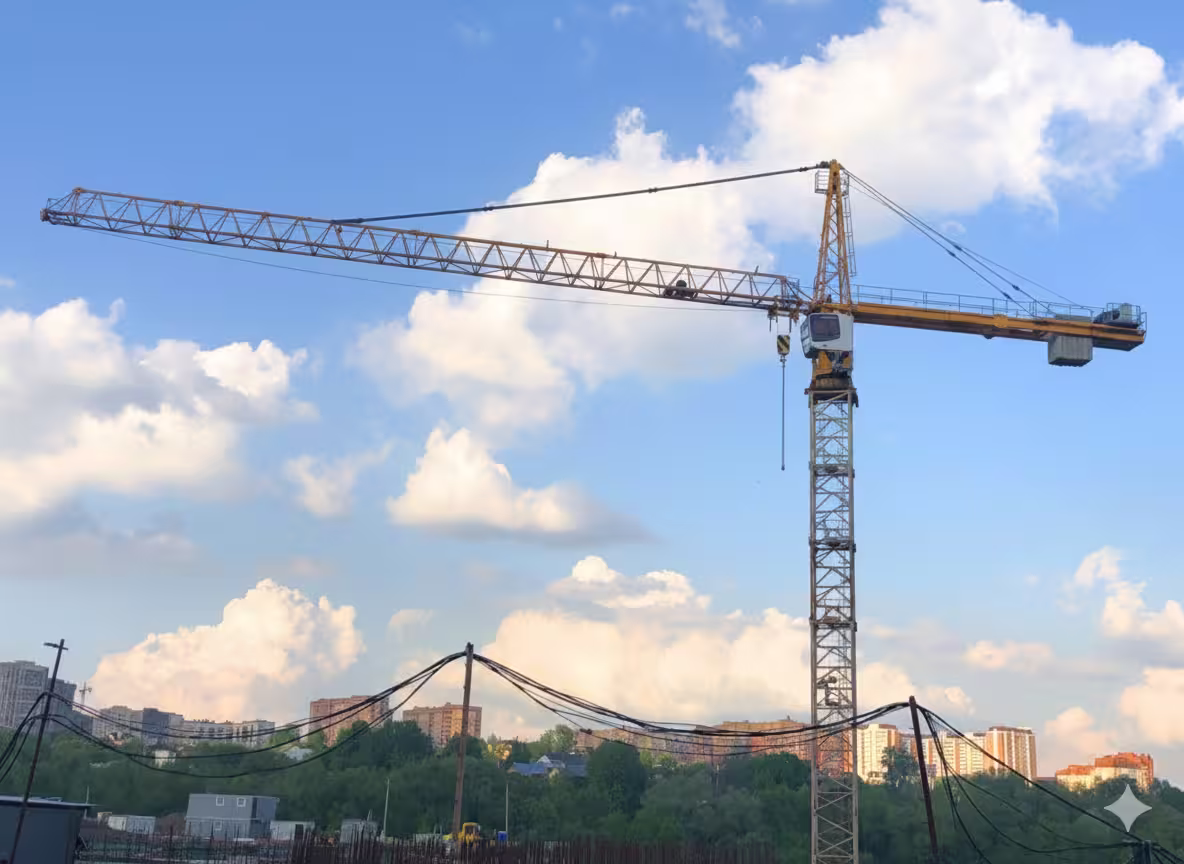

LIEBHERR 140 EC-H

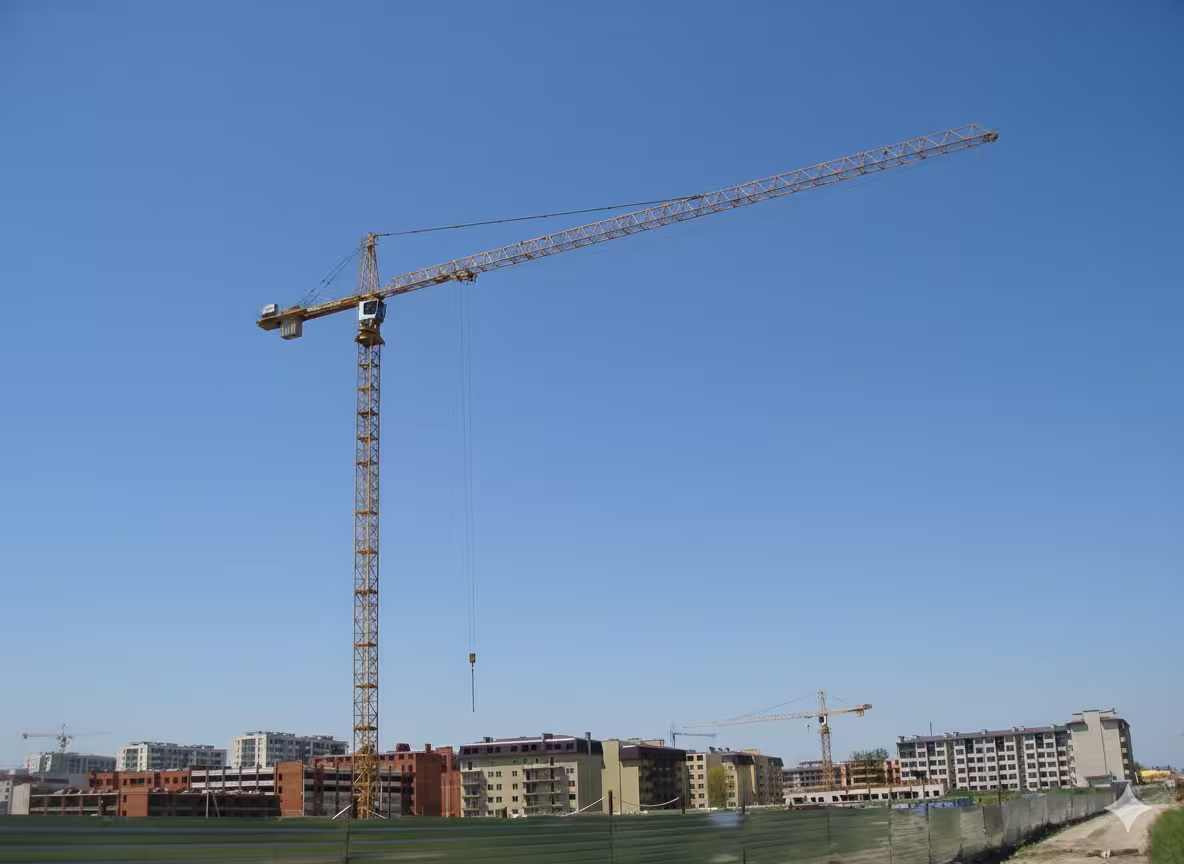

LIEBHERR 140 HC

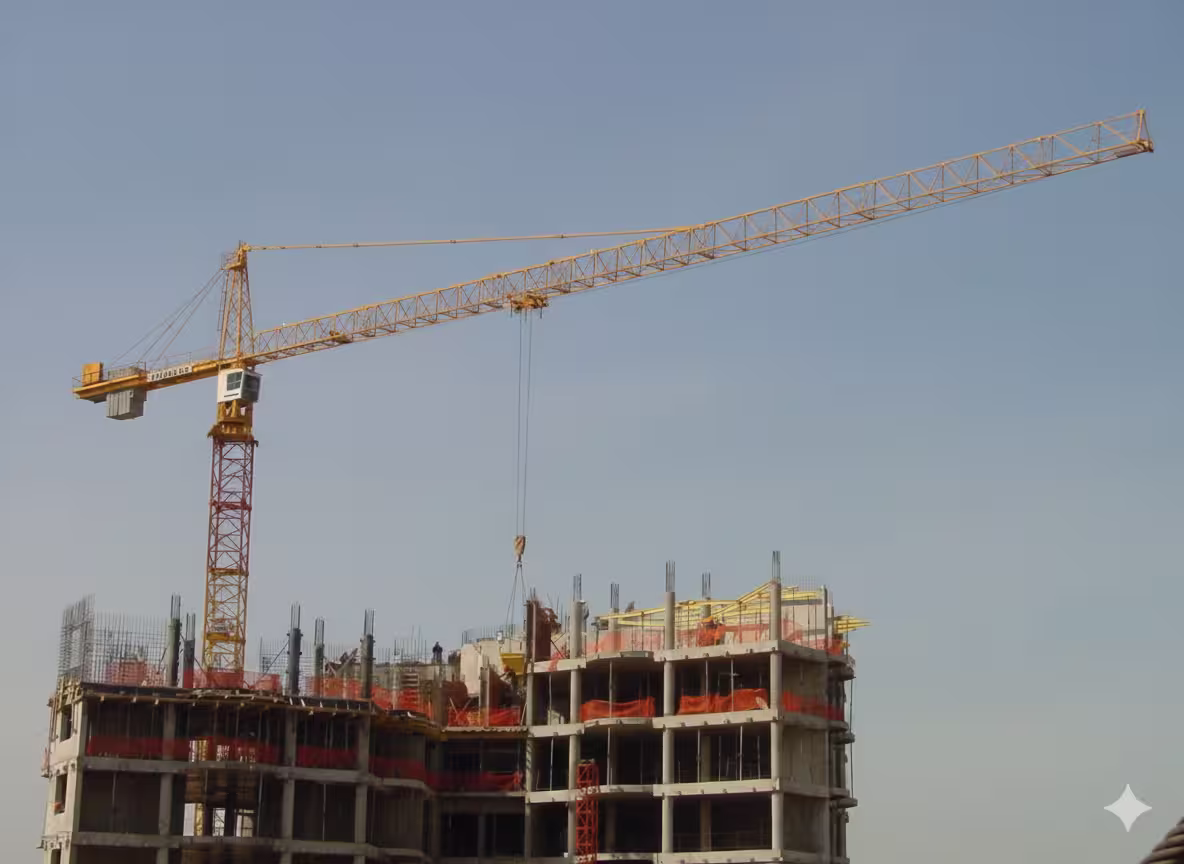

LIEBHERR 180 EC-H

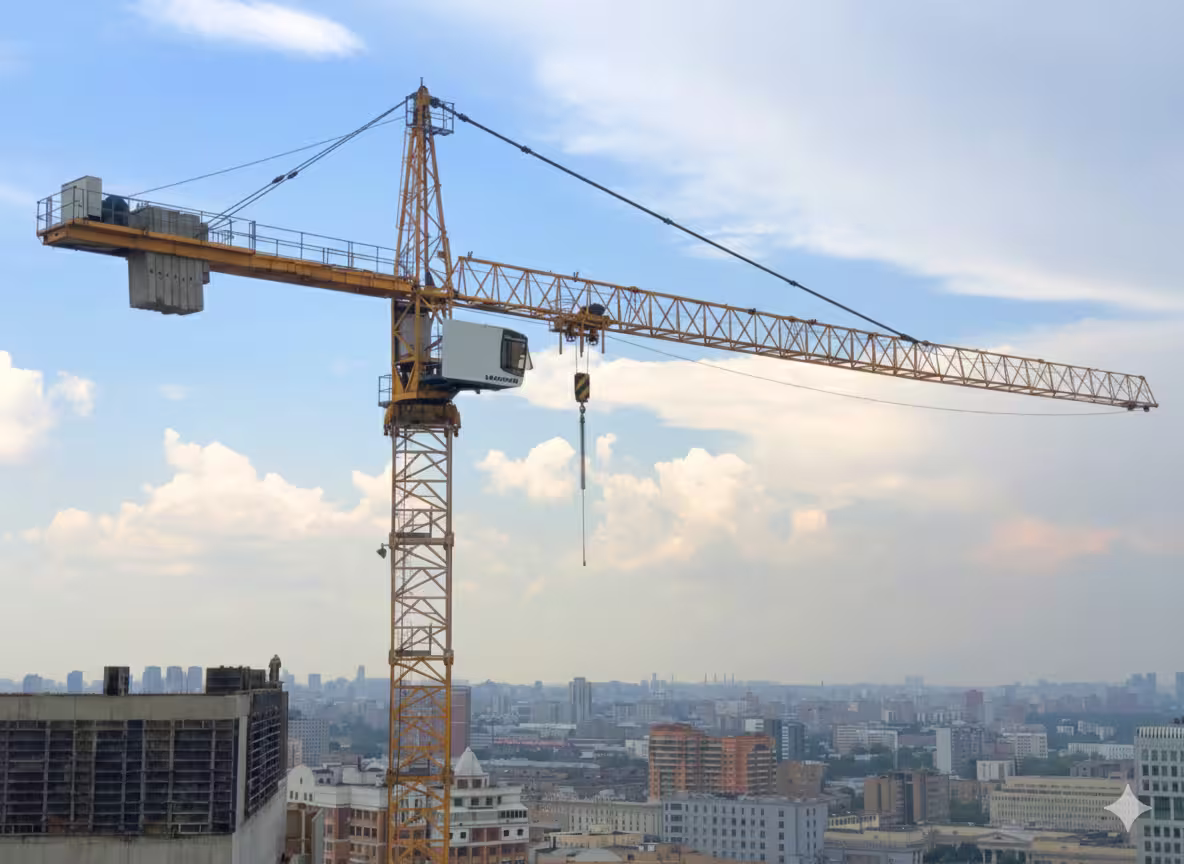

LIEBHERR 200 EC-H

Technical specifications

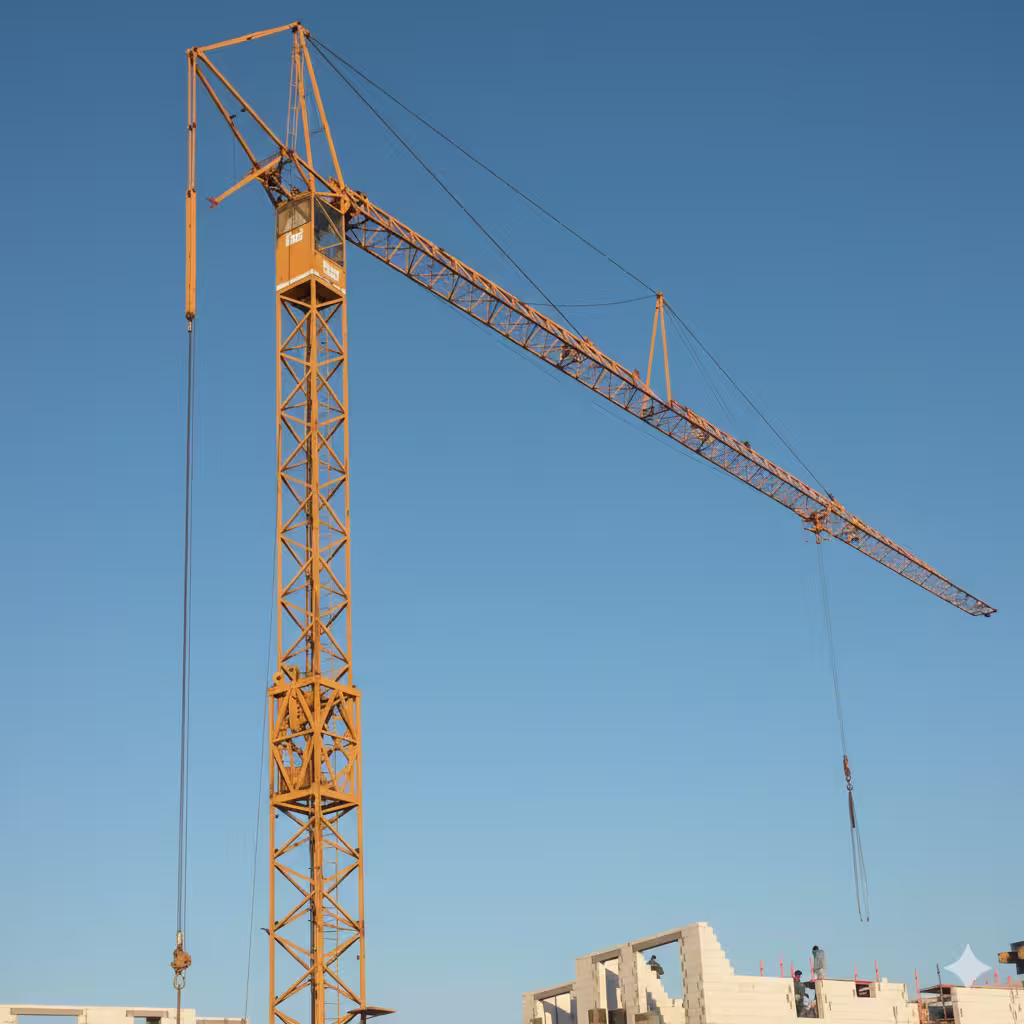

LIEBHERR 63K

The Liebherr 63 K is a versatile and efficient tower crane designed for a wide range of construction tasks. With its flexible configurations, the ability to be installed both stationary and on a rail track, and the option to operate with a luffed jib, this crane ensures high productivity on medium-height sites.

Key Features

Flexible Configuration

Ability to operate with different jib lengths (from 30 to 43 meters) and tower heights.

Two Installation Modes

Suitable for both stationary installation (up to 53 m height) and mobile use on rails (up to 50.6 m height).

Luffed Jib Operation

The 30° and 45° jib operating modes allow for increased lifting height and operation in confined spaces.

Optimized Logistics

Thoughtful design for convenient transportation and quick assembly on site.

Load Capacity and Jib Reach

Maximum Load Capacity

6,000 kg

Standard Load Capacity

3,050 kg

Capacity by Jib Length

43.0 m1,150 kg

40.0 m1,350 kg

35.0 m1,750 kg

30.0 m2,500 kg

Lifting Height and Dimensions

Base Dimensions

4.2 x 4.4 m

Stationary (4 tower sections)

Hook Height

39.0 m

Max. Luffed Jib Height

53.0 m

On rail travel (3 tower sections)

Hook Height

36.6 m

Max. Luffed Jib Height

50.6 m

Weight and Counterweight

Transport Weight

from 18,140 to 19,800 kg

Counterweights

26,000 kgradius 3.6 m

34,000 kgradius 2.9 m

Operating Speeds

Slewing Speed

0 - 0.8 rpm

Trolley Travel

20.0 / 40.0 m/min

Rail Travel

25.0 m/min

Jib Luffing Time

approx. 60 sec (from 0° to 45°)

Hoisting Speeds

6.5 m/minat load 3,050 kg

28.0 m/minat load 3,050 kg

53.0 m/minat load 1,600 kg

Power Requirements

Voltage

380 V

Frequency

50 Hz

Power

28.0 kVA

Cable Cross-Section

4 x 16 mm² (for cable up to 99 m)

Basic Parameters

Freestanding Height

23 m

Maximum Jib Reach

43 m

Capacity at Max. Reach

1.1 t
